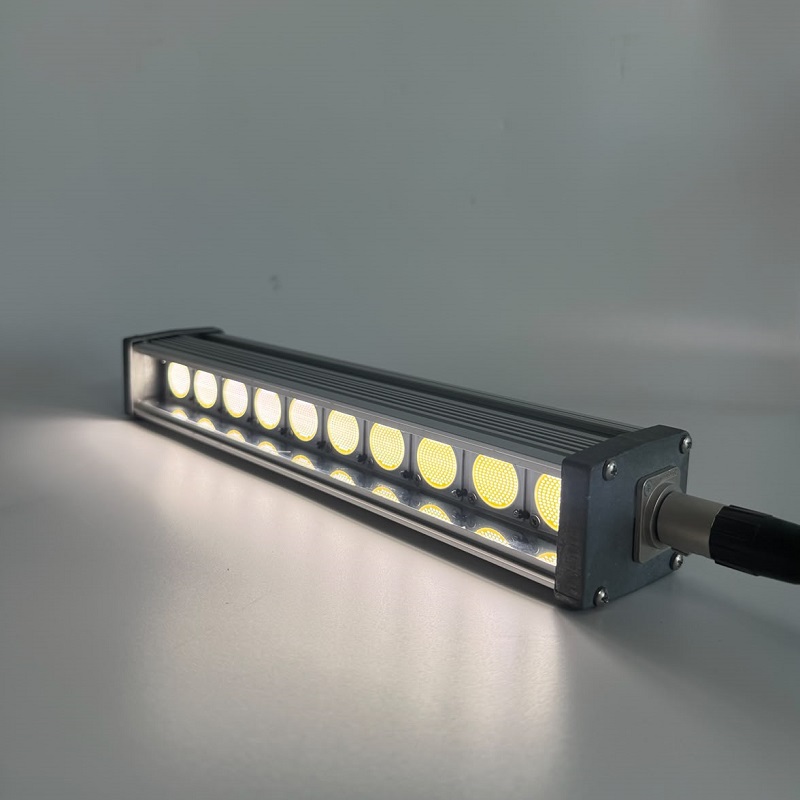

HP Series Bar Lights
HP Series Bar Lights
LUDRE BAR LIGHT FOR MACHINE VISION IMAGE PROCESSING
TECHNICAL SPECIFICATIONS
Illumination Color: 4000K - 6000K
Illumination Angle: 120°
Illumination Intensity: 2.88 k lm - 34.56 k lm
Number of LEDs: 12 - 144
Input Voltage: 24 V
Input Current (15 µs): 4 Amp – 48 Amp
Input Current (1 second): 3 Amp – 32 Amp
Input Current (1 minute): 2 Amp – 24 Amp
Input Current (continuous): 0.7 Amp – 8.4 Amp
Dimensions: 40 cm x 5 cm x 5.5 cm – 370 cm x 5.5 cm – 5.5 cm
Stable Operation at Fixed Voltage: Yes
Diffuser Option: Yes
| Product Code | Features | LED Size | Total Length | Price |
| HP 26 | 2-12-2880lm | 30 cm | 40 cm | 200$ |
| HP 46 | 4-24-5760lm | 60 cm | 70 cm | 255$ |
| HP 56 | 5-30-7200lm | 75 cm | 85 cm | 300$ |
| HP 66 | 6-36-8640lm | 90 cm | 100 cm | 340$ |
| HP 86 | 8-48-11520lm | 120cm | 130cm | 460$ |
| HP 126 | 12-72-17280lm | 180cm | 190cm | 710$ |
| HP 136 | 13-78-18720lm | 195 cm | 205 cm | 855$ |
| HP 146 | 14-84-20832lm | 210cm | 220cm | 940$ |
| HP 156 | 15-90-21600lm | 225cm | 235cm | 1.055$ |
| HP 166 | 13-96-23040lm | 240cm | 250cm | 1.200$ |
| HP 176 | 17-102-24480lm | 255cm | 265cm | 1.340$ |
| HP 186 | 18-108-25920lm | 270cm | 280cm | 1.480$ |
| HP 206 | 20-120-28800lm | 300cm | 310cm | 1.710$ |
| HP 226 | 22-132-31680lm | 330cm | 340cm | 2.000$ |
| HP 246 | 24-144-34560lm | 360cm | 370cm | 2.280$ |
Bar lighting is a widely used illumination method in image processing projects. This method involves the use of a linear light source in the form of a bar and offers various advantages. The text below describes the application areas and advantages of bar lighting in image processing projects:
1. Surface Details and Contrast Enhancement: Bar lighting emphasizes surface details of objects, enhancing contrast. This helps image processing algorithms analyze objects more thoroughly.
2. Measurement and Dimensioning Applications: Linear light sources are designed for use in measurement and dimensioning applications, allowing for precise measurements of objects.
3. Edge Detection and Contour Extraction: Bar lighting is ideal for determining object edges and extracting contours. This feature improves object detection and recognition processes.
4. High-Speed Imaging Applications: Linear light sources are used in high-speed imaging applications to ensure clear imaging of moving objects.
5. Emphasis on Textures: Bar lighting highlights textures on objects, allowing for better focus on material types, patterns, or surface features.
6. High-Precision Reading Applications: Bar lighting can be employed in high-precision applications such as barcode reading and character recognition. This contributes to clearer reading of text and symbols.
7. Shadow Reduction: Linear lighting minimizes shadows, ensuring more uniform illumination of objects and enhancing image analysis processes.
8. Modular and Compatible Design: Bar lighting systems often have a modular and compatible design, allowing them to easily adapt to different application requirements.
Together with the mentioned advantages, bar lighting enables better image quality and analysis results in various image processing projects.
